Pedrollo DG PED EVO 3 – 1 HP Automatic Pressure Boosting System, 230 V, up to 29 GPM
$1,978.00
Reliable shipping
Flexible returns

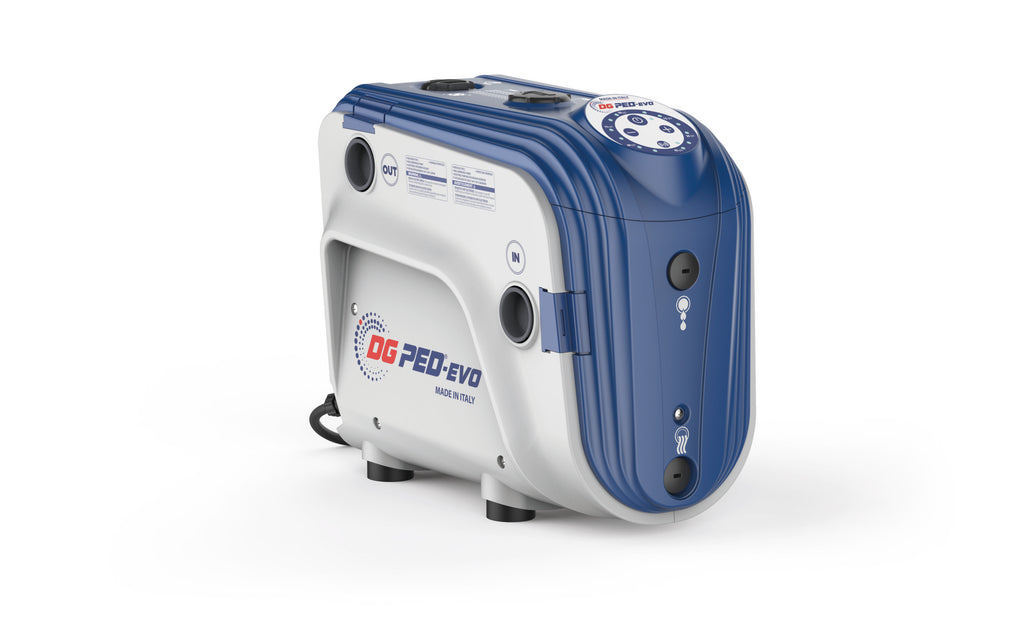

The Pedrollo DG PED EVO 3 is a complete automatic pressure boosting system in one compact unit: a self-priming multi-impeller pump, built-in expansion tank, pressure and flow sensors, check valve and an electronic inverter that holds your water pressure steady as taps open and close. Made in Italy. Sold and supported by Water Solutions in Phoenix, Arizona.
What it does
- Keeps pressure constant at the set point (45 psi from the factory, adjustable 15–75 psi) by varying pump speed to match demand
- Monitors hydraulic and electrical conditions and shuts down on faults (dry running, overload)
- Soft start and variable speed mean lower starting and running current than a fixed-speed pump on a pressure switch
- Can pair with a second DG PED EVO through an optional expansion card for larger homes or multi-unit buildings
- Fits new or existing pressurization systems: city water with low pressure, storage tanks, cisterns and shallow wells (suction lift up to 11 psi / about 25 ft)
Specifications — DG PED EVO 3 (Pedrollo, 60 Hz)
| Motor | 1 HP single-phase, 230 V ±10%, 60 Hz, thermal overload protection |
|---|---|
| Maximum current | 7.5 A |

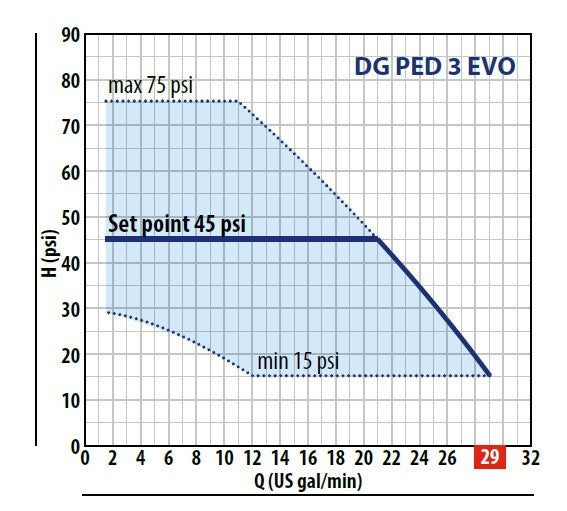

| Flow rate | 1.5 – 29 GPM |
| Head | 15 – 75 psi |
| At 45 psi set point | up to 21 GPM |
| Factory set point | 45 psi (adjustable 15 – 75 psi) |
| Maximum working pressure | 145 psi |
| Max. inlet pressure | 58 psi |
| Ports | 1" NPT inlet and outlet |
| Liquid / ambient temperature | 32 °F – 104 °F |
| Duty | Continuous (S1) · IP X4 · insulation class F |
| Impeller / seal | Noryl impellers · Eagle Burgmann mechanical seal |
| Mounting | Vertical |

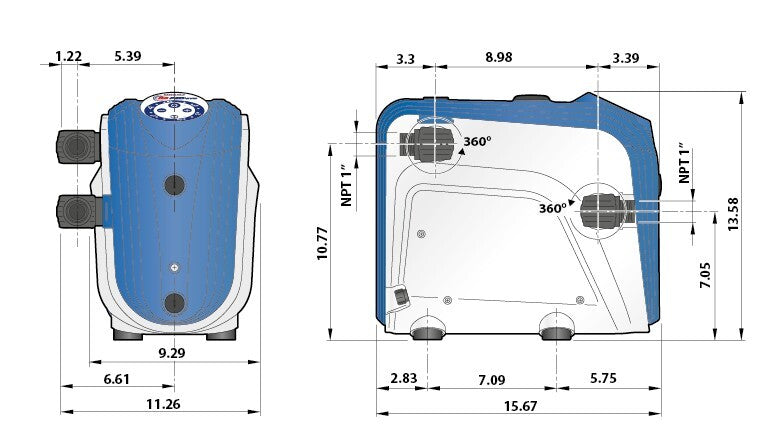

| Size | 15.7" L × 7.1" W × 13.6" H |
| Weight | 33 lbs |
| Certification | CSA |
| Warranty | 2-year limited (Pedrollo) |
Which one?
The DG PED EVO 3 (1 HP, up to 29 GPM) covers most single-family homes. The DG PED EVO 5 (1.5 HP, up to 34 GPM, 90 psi max) is for larger homes, two-family houses, higher fixture counts or when you need more pressure at the far end of the house. Both need a 230 V single-phase circuit.
Not sure which size fits, or want it installed in the Phoenix area? Call 844-928-3710.
Returns & Warranty
- Unused, in the original box: returnable within 30 days with an RMA. 20% restocking fee (covers inspection, repackaging and non-refundable card-processing fees). Buyer pays return shipping.
- Installed, wired, or wet: not returnable. A pump that has been put into service cannot be sold as new.
- Fails after installation: covered by the manufacturer's limited warranty, filed with the manufacturer using your order number, model and serial number. Evaluation typically takes several weeks. We help you file and follow up; refunds or replacements are not issued while a claim is being evaluated.
- Not sure it's the right size? Call 844-928-3710 before you order.
Full details: Return Policy.
